When it comes to electrical infrastructure, choosing the right transformer is crucial. This decision not only affects the efficiency and reliability of power distribution but also has significant implications for safety and environmental impact. For outdoor installations, dry type transformers offer a reliable and efficient solution. In this article, we’ll explore the benefits of using a dry type transformer for outdoor settings, discuss the environmental considerations, and provide insights into installation and maintenance, ensuring you make an informed choice for your electrical needs.

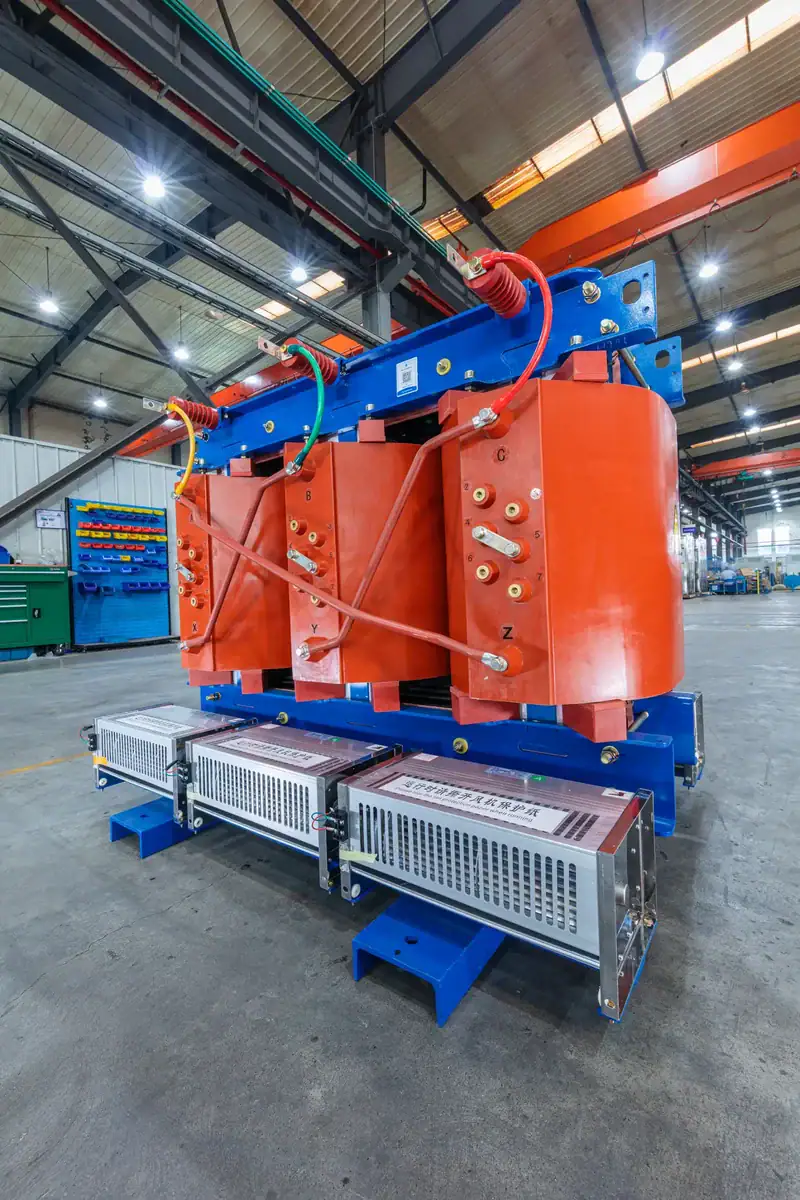

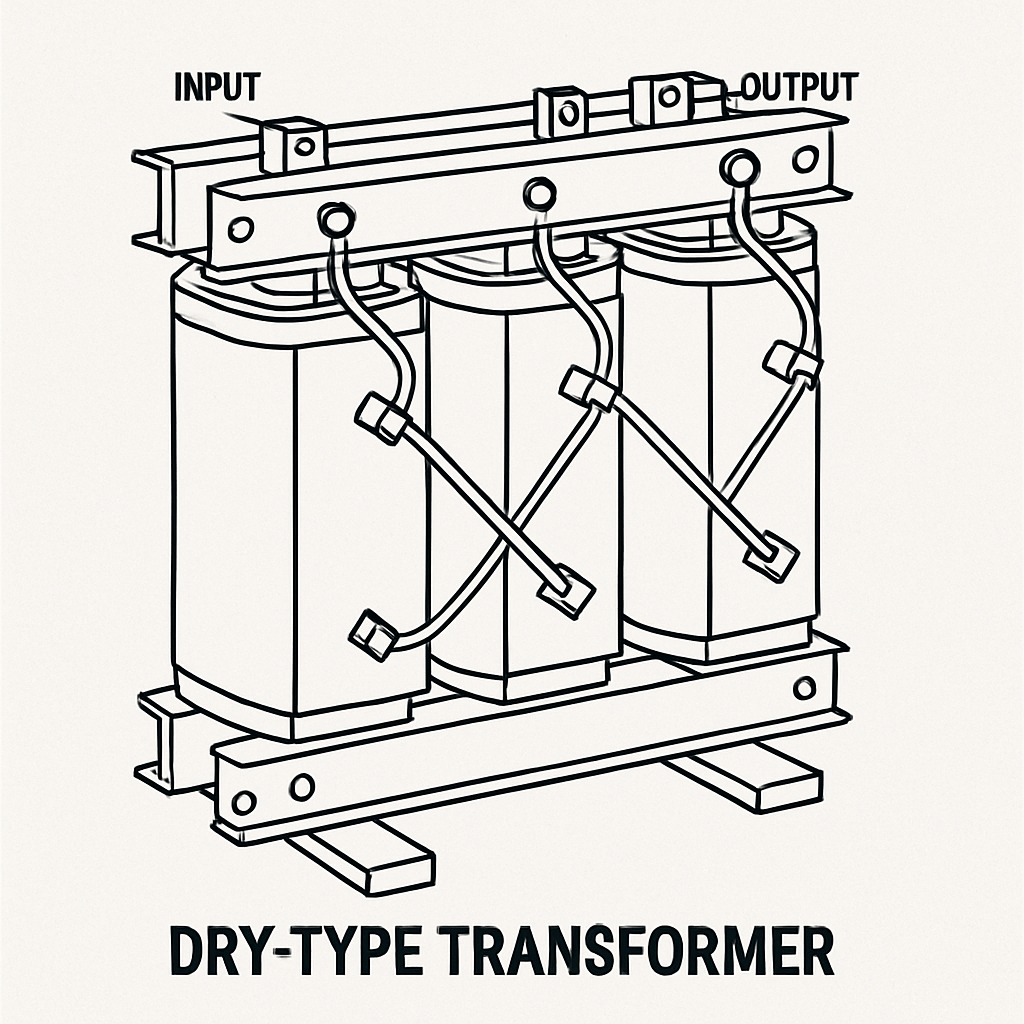

Dry type transformers are electrical transformers that use air instead of liquid for cooling. This fundamental difference from oil-filled transformers presents several advantages, especially in terms of safety and environmental impact. Unlike oil-filled transformers, they do not require a liquid coolant, making them a safer and more environmentally friendly option. Their construction involves insulating and cooling the transformer windings with air circulation, which is facilitated by the design of the transformer enclosure. This design not only enhances safety but also simplifies maintenance and reduces potential environmental hazards.

Key Characteristics of Dry Type Transformers

1. Safety: Without the risk of oil leaks or spills, dry type transformers are less hazardous, especially in sensitive environments. This characteristic significantly reduces the risk of fire and environmental contamination, which is a major concern in both urban and rural settings.
2. Environmental Protection: These transformers are suitable for areas where oil contamination is a concern, contributing to cleaner and safer surroundings. They align well with green initiatives and sustainability goals, as they do not pose a threat to soil and water quality.
3. Durability: Designed to withstand harsh conditions, dry type transformers are often equipped with robust enclosures that protect them from weather and environmental factors. These enclosures are typically constructed from materials that offer excellent resistance to corrosion and mechanical impact, ensuring long-term performance even under challenging conditions.

Advantages of Dry Type Transformers for Outdoor Use

Choosing a dry type transformer for outdoor installation offers several advantages that make it a preferred choice for many applications. These benefits not only enhance operational efficiency but also contribute to a lower total cost of ownership over the transformer’s lifespan.

Weatherproof Design

Dry type transformers are built to endure various weather conditions. The enclosures are typically made from materials that resist corrosion and protect the transformer components from dust, moisture, and other environmental elements. This weatherproof design ensures reliable operation even in extreme climates, such as high humidity, heavy rainfall, or desert-like conditions. Additionally, the design often includes features like UV protection and thermal management systems, which further enhance their suitability for diverse outdoor environments.

Reduced Maintenance

One of the significant benefits of dry type transformers is their low maintenance requirements. Without oil as a coolant, there’s no need for regular oil sampling or replacement, reducing the overall maintenance effort. This makes them an attractive option for remote or hard-to-access locations where maintenance visits are infrequent. Furthermore, their design typically includes fewer moving parts and simpler construction, which minimizes the likelihood of mechanical failures and extends the intervals between routine maintenance checks.

Enhanced Safety

Safety is a critical consideration in any electrical installation. The absence of oil in dry type transformers eliminates the risk of oil fires, providing a safer environment for both personnel and property. Additionally, the reduced risk of environmental contamination makes these transformers a sustainable choice. This enhanced safety profile is particularly valuable in densely populated areas or near sensitive environments where any incident could have severe consequences.

Environmental Considerations

As environmental concerns continue to grow, the choice of transformer becomes more significant. Dry type transformers align well with environmental goals due to their eco-friendly characteristics. They offer a way to support sustainability without compromising on performance or reliability.

Transformer Environmental Protection

Dry type transformers help in minimizing environmental impact. Their design reduces the risk of soil and water contamination, making them suitable for environmentally sensitive areas. Furthermore, many dry type transformers are designed to comply with stringent environmental regulations, ensuring minimal impact on the surrounding ecosystem. These transformers often include eco-friendly materials and manufacturing processes, reflecting a commitment to sustainability from production through to operation.

IP-Rated Transformer Enclosures

The Ingress Protection (IP) rating of a transformer enclosure indicates its ability to resist dust and water ingress. Outdoor dry type transformers often come with high IP ratings, ensuring optimal performance in challenging conditions. This rating is crucial in selecting the right transformer for outdoor installations where exposure to the elements is a concern. High IP ratings assure that the transformer can withstand harsh weather, from torrential rains to dusty environments, without compromising on functionality or safety.

Installation and Considerations

Proper installation of a dry type transformer is essential to ensure its performance and longevity. A well-planned installation process can prevent future issues and enhance the transformer’s operational efficiency. Here are some key considerations for outdoor installation.

Site Selection

Choosing the right location for installation is the first step. The site should be accessible for maintenance and away from potential hazards. Consider factors like proximity to the power source, accessibility for personnel, and potential exposure to environmental elements. Additionally, the installation site should be evaluated for potential risks such as flooding or landslides, ensuring that the transformer remains secure and functional under all conditions.

Foundation and Mounting

A stable foundation is vital for supporting the transformer and minimizing vibrations. Ensure the mounting surface is level and capable of bearing the transformer’s weight. Proper anchoring is necessary to withstand environmental forces such as wind and seismic activity. This may involve using reinforced concrete pads or specialized mounting brackets designed to absorb and distribute mechanical stresses, safeguarding the transformer from damage.

Ventilation

Adequate ventilation is crucial for dry type transformers. Proper airflow around the transformer helps dissipate heat and maintain optimal operating temperatures. Enclosures with ventilation features are often used to enhance air circulation. It’s essential to design the installation with sufficient clearance and airflow pathways to prevent overheating, which can reduce efficiency and lifespan.

Choosing the Right Outdoor Dry Type Transformer

Selecting the appropriate transformer involves evaluating your specific needs and conditions. Here are some tips to guide your decision:

1. Load Requirements: Determine the power demand and select a transformer with the appropriate capacity to handle the load efficiently. This ensures that the transformer operates within its optimal range, maximizing efficiency and minimizing energy losses.
2. Environmental Conditions: Consider the climate and environmental factors at the installation site to choose a transformer with suitable protection features. Factors such as humidity, temperature extremes, and potential exposure to pollutants should guide the selection process.
3. Compliance: Ensure the transformer meets all relevant standards and regulations for outdoor installations. This includes adherence to national and international electrical codes, as well as any specific local requirements that may apply.

Maintenance Tips for Outdoor Transformers

Regular maintenance is essential to ensure the longevity and reliability of your transformer. Here are some maintenance tips:

• Visual Inspections: Regularly check the transformer for signs of wear, damage, or corrosion. Early detection of issues can prevent more significant problems and costly repairs.
• Cleaning: Keep the enclosure and surrounding area free of debris to maintain proper airflow. Regular cleaning prevents the accumulation of dust and dirt, which can hinder cooling and increase the risk of overheating.
• Testing: Conduct routine electrical tests to ensure the transformer operates within specified parameters. These tests can include insulation resistance testing, thermal imaging, and other diagnostic procedures that help identify potential issues before they escalate.

Conclusion

Dry type transformers offer a robust and eco-friendly solution for outdoor electrical installations. Their weatherproof design, reduced maintenance requirements, and enhanced safety make them an ideal choice for various applications. By understanding their advantages and following proper installation and maintenance practices, you can ensure reliable performance and long-lasting service from your outdoor dry type transformer. This approach not only optimizes your infrastructure’s efficiency but also contributes positively to environmental sustainability and safety.
