In modern power distribution systems, safety, reliability, and energy efficiency are critical considerations. Among various transformer technologies, the dry type transformer has become a preferred choice for commercial buildings, industrial facilities, and renewable energy systems. Unlike traditional oil-filled transformers, dry type transformers use air as the cooling medium, eliminating the risks associated with flammable insulating oil.
Because of their safe operation, low maintenance requirements, and environmentally friendly design, dry type distribution transformers are widely used in indoor power distribution networks, data centers, hospitals, and infrastructure projects. Understanding the key specifications and features of dry type transformers can help engineers, contractors, and facility managers select the most suitable transformer for their applications.
What Is a Dry Type Transformer?

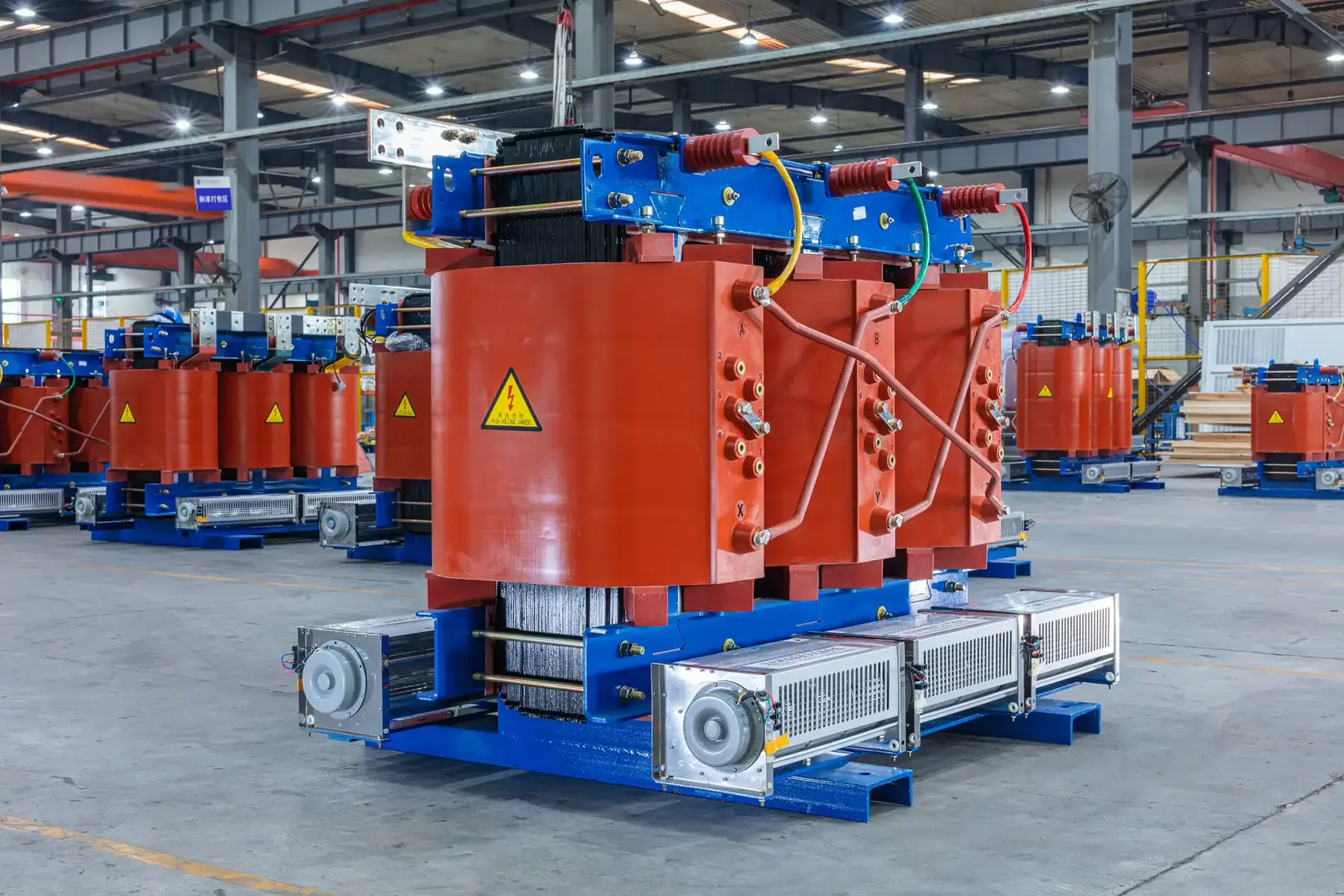

A dry type transformer is an electrical device that transfers electrical energy between circuits through electromagnetic induction while using solid insulation and air cooling instead of liquid insulating oil. Common designs include cast resin dry type transformers and vacuum pressure impregnated (VPI) transformers.
These transformers are designed to operate safely in indoor environments where fire safety and environmental protection are important. Their compact design, high reliability, and stable performance make them suitable for medium voltage transformer systems and low voltage power distribution networks.
Key Specifications of Dry Type Transformers
Selecting the right transformer requires careful evaluation of several technical parameters. The most important dry type transformer specifications include voltage rating, kVA capacity, insulation class, impedance, and cooling method.
Voltage Rating
The voltage rating defines the maximum voltage level the transformer can handle safely. Dry type transformers are commonly used in medium voltage to low voltage power distribution systems, such as 10 kV/0.4 kV or 20 kV/0.4 kV configurations.
Choosing the correct voltage rating ensures proper integration with the electrical network and prevents equipment damage caused by overvoltage conditions.
kVA Rating
The kVA rating represents the transformer’s load-handling capacity. It indicates the maximum apparent power the transformer can safely supply without overheating.
Typical ratings for dry type distribution transformers include:
100 kVA
250 kVA
500 kVA
1000 kVA
2000 kVA and above
Selecting the correct kVA dry type transformer ensures stable operation under expected load conditions and helps prevent efficiency losses or thermal stress.
Insulation Class
Dry type transformers rely on high-performance insulation materials to protect windings and ensure electrical safety. The insulation class determines the maximum allowable operating temperature.
Common insulation classes include:
Class A (105°C)
Class B (130°C)
Class F (155°C)
Class H (180°C)
Modern cast resin transformers typically use Class F or Class H insulation to achieve better thermal performance and longer service life.
Transformer Impedance
Impedance is an important parameter that affects voltage regulation and short-circuit current levels in the power system. Higher impedance reduces short-circuit current but may slightly affect voltage stability.
Proper impedance selection helps ensure compatibility with protection systems and overall electrical network stability.
Cooling Methods
Dry type transformers use air cooling instead of oil cooling. The most common cooling methods include:
AN (Air Natural): Natural airflow provides cooling without additional equipment.
AF (Air Forced): Cooling fans increase airflow to improve heat dissipation and allow higher load capacity.
Forced air cooling is commonly used in large capacity dry type power transformers installed in industrial environments or high-load applications.
Key Features and Advantages of Dry Type Transformers
Dry type transformers offer several important benefits compared with oil-filled transformers, making them suitable for modern electrical infrastructure.
High Safety Performance
One of the biggest advantages of dry type transformers is their excellent fire safety. Since they do not contain flammable insulating oil, the risk of fire, explosion, or oil leakage is significantly reduced.
This makes them ideal for installation in locations such as:
Commercial buildings
Hospitals
Schools and universities
Data centers
Underground facilities
Low Maintenance Requirements
Unlike oil-filled transformers, dry type transformers do not require oil sampling, oil filtration, or periodic oil replacement. This greatly reduces maintenance costs and simplifies operation.
Routine maintenance usually includes simple inspections, cleaning of ventilation paths, and checking electrical connections.
Environmentally Friendly Design
Dry type transformers are considered an environmentally friendly transformer solution. Without insulating oil, they eliminate the possibility of soil or groundwater contamination caused by oil leakage.
They also produce no harmful gases and comply with modern environmental protection standards, making them suitable for green building projects and sustainable infrastructure.
High Efficiency and Energy Savings
Modern dry type transformers are designed with high-quality magnetic cores and advanced winding technology. These features reduce no-load losses and load losses, resulting in improved energy efficiency.
Lower energy loss means reduced operating costs and better performance in long-term power distribution systems.
Applications of Dry Type Transformers
Thanks to their safety, reliability, and flexibility, dry type transformers are widely used across multiple industries.
Commercial Buildings
Large commercial complexes rely on stable power distribution systems. Dry type transformers are commonly installed in:
Office buildings
Shopping malls
Hospitals
Airports
Their compact design and fire-resistant properties make them ideal for indoor transformer installations.
Industrial Facilities
Manufacturing plants require transformers capable of handling heavy loads and operating in demanding environments. Dry type transformers provide reliable power for:
Industrial machinery
Production lines
Automation equipment
Factory power distribution systems
Renewable Energy Systems
Dry type transformers play an important role in solar power plants and wind energy projects. They are used for voltage conversion and grid connection in renewable energy systems.
Their ability to operate in diverse environmental conditions makes them suitable for outdoor and indoor renewable installations.
Residential Power Distribution
In residential areas, dry type transformers are often used in local substations or building power distribution rooms. Their quiet operation and safety characteristics make them suitable for residential neighborhoods.
Installation and Maintenance Guidelines
Proper installation and maintenance are essential for ensuring optimal performance and extending transformer service life.
Installation Considerations
Ensure adequate ventilation for effective air cooling
Install the transformer on a stable, level surface
Maintain proper clearance around the transformer for airflow
Follow manufacturer installation guidelines and electrical codes
Maintenance Practices
Although dry type transformers require minimal maintenance, periodic inspection is still recommended.
Maintenance activities include:
Checking for dust accumulation and cleaning ventilation channels
Inspecting insulation and electrical connections
Monitoring temperature and load conditions
Ensuring cooling fans operate properly in forced-air systems
Regular maintenance helps ensure long-term reliability and efficient transformer performance.
Conclusion
Dry type transformers have become a key component in modern electrical power distribution systems. Their air-cooled design eliminates the risks associated with oil-filled transformers while providing excellent safety, efficiency, and environmental protection.
With advantages such as low maintenance, fire resistance, high efficiency, and reliable operation, dry type transformers are widely used in commercial buildings, industrial facilities, renewable energy systems, and residential power networks.
By carefully evaluating dry type transformer specifications such as voltage rating, kVA capacity, insulation class, impedance, and cooling method, engineers and project managers can select the most suitable transformer for their applications. Choosing the right transformer ensures safe, stable, and energy-efficient power distribution for years to come.
